Computer-simulated knitting goes right down to the yarn


Provided

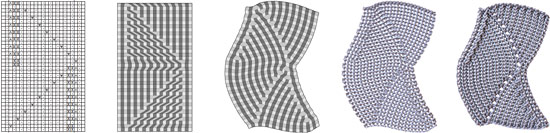

Stages in the creating of knitting images. From a knitting pattern, a stitch mesh is created. The mesh is deformed to match the shape of the garment. 3-D images of individual stitches are added to the polygons that make up the mesh, and finally the yarn images are "relaxed" to fit the shape of the polygons.

Provided
Simulated knit dresses, with two different patterns.

Provided
Whimsically - and to demonstrate the ability to fit any form - researchers put a sweater on a sheep.

Provided
Graphic simulations of knitting, left, compared with photographs of hand knitting from the same pattern.

To put clothes on their characters, computer graphic artists usually simulate cloth by creating a thin sheet, then adding some sort of texture. But that doesn't work for cable-knit sweaters. To make the image realistic, the computer has to simulate the surface right down to the intricate intertwining of yarn. So computer scientists are in effect teaching the computer to knit.

A method for building simulated knitted fabric out of an array of individual stitches was reported at the 39th International Conference and Exhibition of Computer Graphics and Interactive Techniques (SIGGRAPH), Aug. 2-9 in Los Angeles, by Cem Yuksel of the University of Utah; Jonathan Kaldor, Ph.D. '11, of Facebook; and Steve Marschner and Doug James, Cornell associate professors of computer science. The work was done when Yuksel was a postdoctoral researcher at Cornell and Kaldor a Ph.D. candidate.

In knitting, a single stitch is formed by pulling yarn through a loop. Rows of stitches, built on the loops formed by previous rows, make up the finished garment. The yarn can be pulled through in a variety of ways or multiple times, creating various shapes and textures. To simulate this realistically, a computer graphic artist would have to painstakingly model the 3-D structure of every stitch.

The Cornell innovation is to create a 3-D model of a single stitch and then combine multiple copies into a mesh, like tiles in a mosaic. The computer projects the mesh onto a model of the desired shape of the garment, treating each stitch as a tiny flat polygon that stretches and bends to fit the 3-D surface. Then it "relaxes" the graphic image of each stitch to fit the shape of its polygon, just as real yarn would stretch and bend to fit the shape of the wearer.

"We are actually changing the shape of the yarn loops that make up the stitches," Marschner explained, "simulating how they wrap around other loops." The result is a simulation with detail down to the yarn level. The trickiest part, Marschner said, is to make sure the images of yarn loops don't slide through each other like ghosts. That would cause the simulation to "unravel" like a dropped stitch in real knitting.

The researchers tested their method with several patterns from knitting books and created images of dresses, sweaters, a shawl and a tea cozy. The simulations are highly realistic, but the researchers noted that the results of knitting a particular pattern depend on the yarn and needles used, as well as the style of the individual knitter. The method has some parameters that can be adjusted to simulate the effects of different needles or yarn, or different yarn tension used by the knitter, they said.

The process is computationally intensive, requiring several hours to simulate a garment (cable stitching takes the longest). As of today it would not be practical for an interactive application such as virtual reality, Marschner said, but it would be usable for movies. An animator would set up a sequence of frames and let it run overnight.

The research was supported by the National Science Foundation, the Alfred P. Sloan Foundation, the John Simon Guggenheim Memorial Foundation and Pixar.
